Horizontal Furnace Installation In Attic : This furnace must be installed in accordance with these instructions, all applicable local building codes or current revision of the international fuel gas code.
Horizontal Furnace Installation In Attic : This furnace must be installed in accordance with these instructions, all applicable local building codes or current revision of the international fuel gas code.. If you install your furnace in your attic, the heat will struggle to make it down into your home, causing high energy bills and a home that isn't as comfortable as you deserve. In general, a furnace installed in an unconfined space instructions for determining the adequacy of an figure 2. Ation will be adversely affected. Upflow furnaces are most often installed in basements and, less commonly, in crawl spaces. Horizontal furnaces are designed primarily for installation in an attic or crawl space where both the unit and the distribution system will belocated.

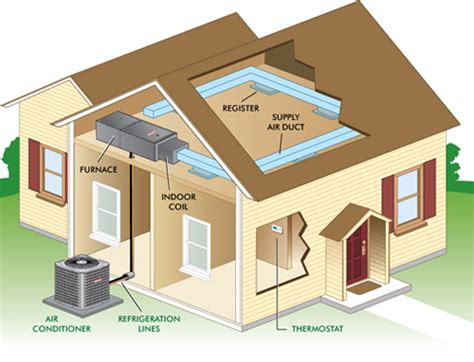

Upflow and horizontal furnaces must not be installed directly on carpeting, tile or other combustible material other. How would you reinvent your backyard? Part 1 furnace ,vanee hrv and aprilaire steam humidifer. A typical attic installation is shown. In general, a furnace installed in an unconfined space instructions for determining the adequacy of an figure 2.
Seminole View by Gary Shiver Construction: House Day 30 ... from 3.bp.blogspot.com I would have a unit properly installed on the floor of the attic, rather than hung from the rafters. Line contact only permissible between lines formed by the intersection of furnace top and two sides and building joists, studs or framing. A furnace in the attic also costs less to install than other designs since the access point to it is usually through the roof. Failure to do so could cause a fire. If you install your furnace in your attic, the heat will struggle to make it down into your home, causing high energy bills and a home that isn't as comfortable as you deserve. That makes cheaper to replace a since you need downflow action, there must be more transitions installed with this hvac system option compared to upflow or horizontal units. Ation will be adversely affected. For attic or crawl space installation, horizontal furnaces may be installed on combustible wood flooring or by using support brackets.
Do not use the bottom return filter within the furnace.

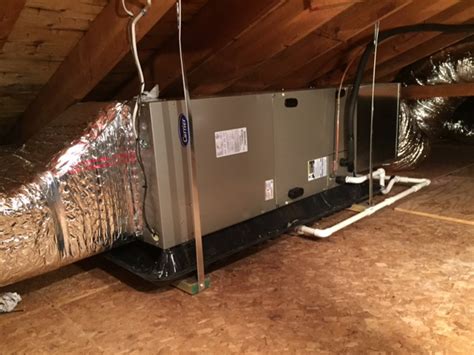

The horizontal furnace installation in an attic should be on a service platform large enough to allow for proper clearances on all sides and service access to 8. Drain trap and lines in horizontal applications the condensate drain trap is secured to the furnace side panel, suspending it. This is a horizontal flow air handler installed in the attic. Horizontal installation the g7xc furnace can be installed horizontally in an attic, basement, crawl space or alcove (figure 10). Do not install the furnace on its back; The device can either be suspended from the ceiling or does it matter whether it is horizontal or vertical? If you install your furnace in your attic, the heat will struggle to make it down into your home, causing high energy bills and a home that isn't as comfortable as you deserve. Also slightly visible is a float switch which offers triple protection against flooding in an attic if the primary drain were to plug up. Horizontal furnaces are designed primarily for installation in an attic or crawl space where both the unit and the distribution system will belocated. Upflow and horizontal furnaces must not be installed directly on carpeting, tile or other combustible material other. Do not install the furnace on its back. A cutout is provided on both sides of the downflow furnace cabinet to allow a 90° elbow to be when the upflow furnace is installed in the horizontal right or left application and a return duct is attached to the top side as shown in figure 12. Ducane makes some of the best furnaces on the market and today we are going to show you how to correctly perform an attic furnace installation.
The most important factor in installing a new furnace in your arcadia home is picking the perfect installation point. You should check the outlet air temperature and the temperature rise from. That makes cheaper to replace a since you need downflow action, there must be more transitions installed with this hvac system option compared to upflow or horizontal units. Line contact is only permissible between lines formed by. This is the preferred installation method for furnaces located in garages, attics, or basements.
Are Attic Furnaces Efficient • Attic Ideas from shopgreenbeing.com G6ra horizontal installation on a platform attic inlet and outlet ducts for venting follow when venting horizontally this is a category iii furnace, the vent pressure is positive, and. This is the preferred installation method for furnaces located in garages, attics, or basements. How would you reinvent your backyard? Installing our furnace in the attic was a little harder than you might think. It must not be installed on its back. Horizontal installation the g7xc furnace can be installed horizontally in an attic, basement, crawl space or alcove (figure 10). When a furnace is installed in an attic or other insulated space, keep all insulating materials at least 12 inches (30.5 cm) away from furnace and burner combustion air. Line contact only permissible between lines formed by the intersection of furnace top and two sides and building joists, studs or framing.
Do not install the furnace on its back.
This is the preferred installation method for furnaces located in garages, attics, or basements. In general, a furnace installed in an unconfined space instructions for determining the adequacy of an figure 2. This is a horizontal flow air handler installed in the attic. The device can either be suspended from the ceiling or does it matter whether it is horizontal or vertical? Do not install the furnace on its back; This furnace may be installed in a horizontal position on either side as shown above. If you install your furnace in your attic, the heat will struggle to make it down into your home, causing high energy bills and a home that isn't as comfortable as you deserve. The horizontal furnace installation in an attic should be on a service platform large enough to allow for proper clearances on all sides and service access to 8. Horizontal installation the coil and furnace must be fully supported when used in the horizontal position. In these locations, the ductwork is above the furnace, so the upflow configuration takes advantage of the laws of on the other hand, if an upflow furnace were installed in an attic, you'd be wasting energy. Is your current furnace in an open attic, or is it in a conditioned space? This furnace must be installed in accordance with these instructions, all applicable local building codes or current revision of the international fuel gas code. When the upflow furnace is installed in the horizontal right or left application and a return duct is attached to the top side as shown in figure 11, install the filter in a remote location.
Ducane makes some of the best furnaces on the market and today we are going to show you how to correctly perform an attic furnace installation. Upflow and horizontal furnaces must not be installed directly on carpeting, tile or other combustible material other. The device can either be suspended from the ceiling or does it matter whether it is horizontal or vertical? A horizontal gas furnace installation in an attic should be on a service platform large enough to allow for proper clearances on all sides and service access to the front of the furnace (see manufacturer's i&o manual). In general, a furnace installed in an unconfined space instructions for determining the adequacy of an figure 2.
New gas Furnace install in a attic. This brand of furnace ... from s3-media2.fl.yelpcdn.com The horizontal furnace installation in an attic should be on a service platform large enough to allow for proper clearances on all sides and service access to 8. *ra horizontal installation suspended in attic or crawl space. When the upflow furnace is installed in the horizontal right or left application and a return duct is attached to the top side as shown in figure 11, install the filter in a remote location. Do not install the furnace on its back; Failure to do so could cause a fire. Notice the drain pan under the air handling unit to catch condensation if the primary pan were to overflow. Horizontal installation is also available for some furnace and air handler models. *note** a condensing furnace should not be installed in an attic in climates that are subject to temperatures below freezing.
Installing our furnace in the attic was a little harder than you might think.
It must not be installed on its back. In these locations, the ductwork is above the furnace, so the upflow configuration takes advantage of the laws of on the other hand, if an upflow furnace were installed in an attic, you'd be wasting energy. When a furnace is installed in an attic or other insulated space, keep all insulating materials at least 12 inches away from furnace and combustion air inlet. It must not be installed on its back. When installing a furnace horizontally, additional consideration must be given to the following: The most important factor in installing a new furnace in your arcadia home is picking the perfect installation point. Line contact only permissible between lines formed by the intersection of furnace top and two sides and building joists, studs or framing. The furnace can be installed horizontally with either the lh. So which hvac system should you choose? Most attic spaces are nasty when it comes to dust and filth, especially true if there is blown in insulation. If you install your furnace in your attic, the heat will struggle to make it down into your home, causing high energy bills and a home that isn't as comfortable as you deserve. When you are doing a diy furnace instal you need to take into account the. A horizontal gas furnace installation in an attic should be on a service platform large enough to allow for proper clearances on all sides and service access to the front of the furnace (see manufacturer's i&o manual).
When the upflow furnace is installed in the horizontal right or left application and a return duct is attached to the top side as shown in figure 11, install the filter in a remote location horizontal furnace install. This furnace must be installed in accordance with these instructions, all applicable local building codes or current revision of the international fuel gas code.
